Containerizing a Microservice E-Commerce Application with Docker

Author: Duc Thai

Overview

Introduction

Today we'll walk through how to containerize a microservice application using Docker. Microservice architecture has become the standard for modern software development because it allows teams to deliver features quickly and efficiently. As a DevOps engineer, you'll definitely encounter microservice applications, and knowing how to containerize them is essential.

Application Architecture

Our e-commerce application consists of six services that work together:

1. Nginx API Gateway (Port 80)

Acts as the reverse proxy and entry point for all requests. It routes traffic to the appropriate microservice based on the URL path.

2. Client Service (Port 4200)

The frontend application built with Angular 12. This loads the website pages that users interact with.

3. Node API (Port 5000)

Backend REST API built with Node.js and Express. Handles products, categories, and orders. Routes are prefixed with /api.

4. Java API (Port 9000)

Backend REST API built with Spring Boot. Manages the books catalog. Routes are prefixed with /webapi.

5. MongoDB (Port 27017)

NoSQL database for the Node API. Stores products, categories, and order data.

6. MySQL (Port 3306)

SQL database for the Java API. Stores books information.

How Services Communicate

User Request → Nginx API Gateway → Routes based on URL path:
  └─ /         → Angular Client (port 4200)
  └─ /api      → Node.js API (port 5000) → MongoDB
  └─ /webapi   → Java API (port 9000) → MySQL

## Getting Started

Step 1: Clone the Repository

Clone the code and open it in your favorite IDE.

Step 2: Containerize the Angular Client

Navigate to the client folder and create a Dockerfile. We'll use a multi-stage build to optimize the image size:

File: client/Dockerfile

FROM node:14 AS web-build
WORKDIR /usr/src/app
COPY ./ ./client
RUN cd client && npm install && npm run build --prod

# Use official nginx image as the base image
FROM nginx:latest

# Copy the build output to replace the default nginx contents.
COPY --from=web-build /usr/src/app/client/dist/client/ /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf

# Expose port 4200
EXPOSE 4200

What's happening here?

Stage 1 (web-build): Uses Node.js 14 to install dependencies and build the Angular application for production.
Stage 2: Uses the official Nginx image to serve the built static files. This keeps the final image small since we don't need Node.js in production.

Nginx Configuration for Angular

Create client/nginx.conf to configure how Nginx serves the Angular app:

server {
    listen       4200;
    listen  [::]:4200;
    server_name  localhost;

    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }

    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }
}

This configuration tells Nginx to listen on port 4200 and serve files from /usr/share/nginx/html.

Step 3: Containerize the Node.js API

Navigate to the nodeapi folder and create a Dockerfile:

File: nodeapi/Dockerfile

FROM node:14 AS nodeapi-build
WORKDIR /usr/src/app
COPY ./ ./nodeapi/
RUN cd nodeapi && npm install

FROM node:14
WORKDIR /usr/src/app/
COPY --from=nodeapi-build /usr/src/app/nodeapi/ ./
RUN ls
EXPOSE 5000
CMD ["/bin/sh", "-c", "cd /usr/src/app/ && npm start"]

What's happening here?

Stage 1: Installs all npm dependencies.
Stage 2: Copies the application with dependencies and starts the Node.js server on port 5000.

Step 4: Containerize the Java API

Navigate to the javaapi folder and create a Dockerfile:

File: javaapi/Dockerfile

FROM eclipse-temurin:8-jdk AS BUILD_IMAGE
WORKDIR /usr/src/app/
RUN apt update && apt install maven -y
COPY ./ /usr/src/app/
RUN mvn install -DskipTests

FROM eclipse-temurin:8-jre

WORKDIR /usr/src/app/
COPY --from=BUILD_IMAGE /usr/src/app/target/book-work-0.0.1-SNAPSHOT.jar ./book-work-0.0.1.jar

EXPOSE 9000
ENTRYPOINT ["java","-jar","book-work-0.0.1.jar"]

What's happening here?

Stage 1 (BUILD_IMAGE): Uses Eclipse Temurin JDK 8 to compile the Java application with Maven.
Stage 2: Uses Eclipse Temurin JRE 8 (smaller image) to run the compiled JAR file. This reduces the final image size significantly.

Note: We use Eclipse Temurin instead of the deprecated OpenJDK images.

Step 5: Configure the Nginx API Gateway

We don't build a separate Nginx image for the API gateway. Instead, we use the official Nginx image from Docker Hub and attach our configuration as a volume.

Why two Nginx instances?

Angular Nginx: Serves the Angular static files on port 4200.
API Gateway Nginx: Routes incoming requests to the appropriate microservice based on the URL path on port 80.

File: nginx/default.conf

upstream client {
    server client:4200;
}

server {
    listen 80;

    # Routes to Angular client
    location / {
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_pass http://client/;
    }

    # Routes to Node.js API
    location /api {
        proxy_pass http://api:5000;
    }

    # Routes to Java API
    location /webapi {
        proxy_pass http://webapi:9000;
    }
}

What's happening here?

Requests to / are forwarded to the Angular client container.
Requests to /api are forwarded to the Node.js API container on port 5000.
Requests to /webapi are forwarded to the Java API container on port 9000.

Step 6: Create Docker Compose Configuration

Now we bring all services together with Docker Compose. Create a docker-compose.yaml file in the root directory:

File: docker-compose.yaml

version: "3.8"

services:
  # Angular application
  client:
    build:
      context: ./client
    ports:
      - "4200:4200"
    container_name: client
    depends_on:
      - api
      - webapi

  # Node.js API
  api:
    build:
      context: ./nodeapi
    ports:
      - "5000:5000"
    restart: always
    container_name: api
    depends_on:
      - nginx
      - emongo

  # Java API
  webapi:
    build:
      context: ./javaapi
    ports:
      - "9000:9000"
    restart: always
    container_name: webapi
    depends_on:
      - emartdb

  # Nginx API Gateway
  nginx:
    restart: always
    image: nginx:latest
    container_name: nginx
    volumes:
      - "./nginx/default.conf:/etc/nginx/conf.d/default.conf"
    ports:
      - "80:80"

  # MongoDB database
  emongo:
    image: mongo:4
    container_name: emongo
    environment:
      - MONGO_INITDB_DATABASE=epoc
    ports:
      - "27017:27017"

  # MySQL database
  emartdb:
    image: mysql:8.0.33
    container_name: emartdb
    ports:
      - "3306:3306"
    environment:
      - MYSQL_ROOT_PASSWORD=emartdbpass
      - MYSQL_DATABASE=books

Understanding the Docker Compose File:

Service 1: Client (Angular)

Builds the image from the client/Dockerfile
Maps container port 4200 to host port 4200
Depends on api and webapi services

Service 2: API (Node.js)

Builds the image from the nodeapi/Dockerfile
Maps container port 5000 to host port 5000
restart: always ensures the container restarts if it stops
Depends on nginx and emongo services

Service 3: WebAPI (Java)

Builds the image from the javaapi/Dockerfile
Maps container port 9000 to host port 9000
restart: always ensures automatic restart on failure
Depends on emartdb service

Service 4: Nginx (API Gateway)

Uses the official Nginx image from Docker Hub
Maps container port 80 to host port 80
Mounts the nginx/default.conf file as a volume for configuration

Service 5: EMongo (MongoDB)

Uses the official MongoDB 4 image
Maps container port 27017 to host port 27017
Initializes with database name epoc

Service 6: EMartDB (MySQL)

Uses MySQL 8.0.33 image
Maps container port 3306 to host port 3306
Sets root password to emartdbpass
Creates database named books

Key Concepts Summary

Before building and running, let's understand the core concepts:

1. Containerization Basics

Containerization is about:

Writing Dockerfiles for each service
Writing a docker-compose.yaml file to orchestrate multiple services
Writing configuration files for services that need custom settings (like Nginx)

2. You Don't Need to Understand Everything

You don't need to understand every single line of code to containerize an application. You just need a basic understanding of:

What the application does (e.g., Angular returns HTML, Node.js runs an Express API, Java runs a Spring Boot API)
How to host it (e.g., Angular → host on Nginx, Node.js API → host on Node server, Java Spring Boot → host on embedded Tomcat)

3. Multi-Stage Builds

We use multi-stage builds to:

Reduce image size: Only production dependencies end up in the final image
Separate build and runtime: Build tools stay in the build stage, runtime only gets what's needed

4. Service Communication in Docker

In development: Services call localhost:PORT
In Docker: Service names replace localhost (e.g., emongo, emartdb, api, webapi)
Docker's internal DNS resolves service names to container IPs

Build and Run

Now we're ready to build and run the application!

Build all services:

docker compose build

This command builds Docker images for all services defined in docker-compose.yaml.

Start all services:

docker compose up

This command starts all containers. You can add -d flag to run in detached mode (background).

Access the Application

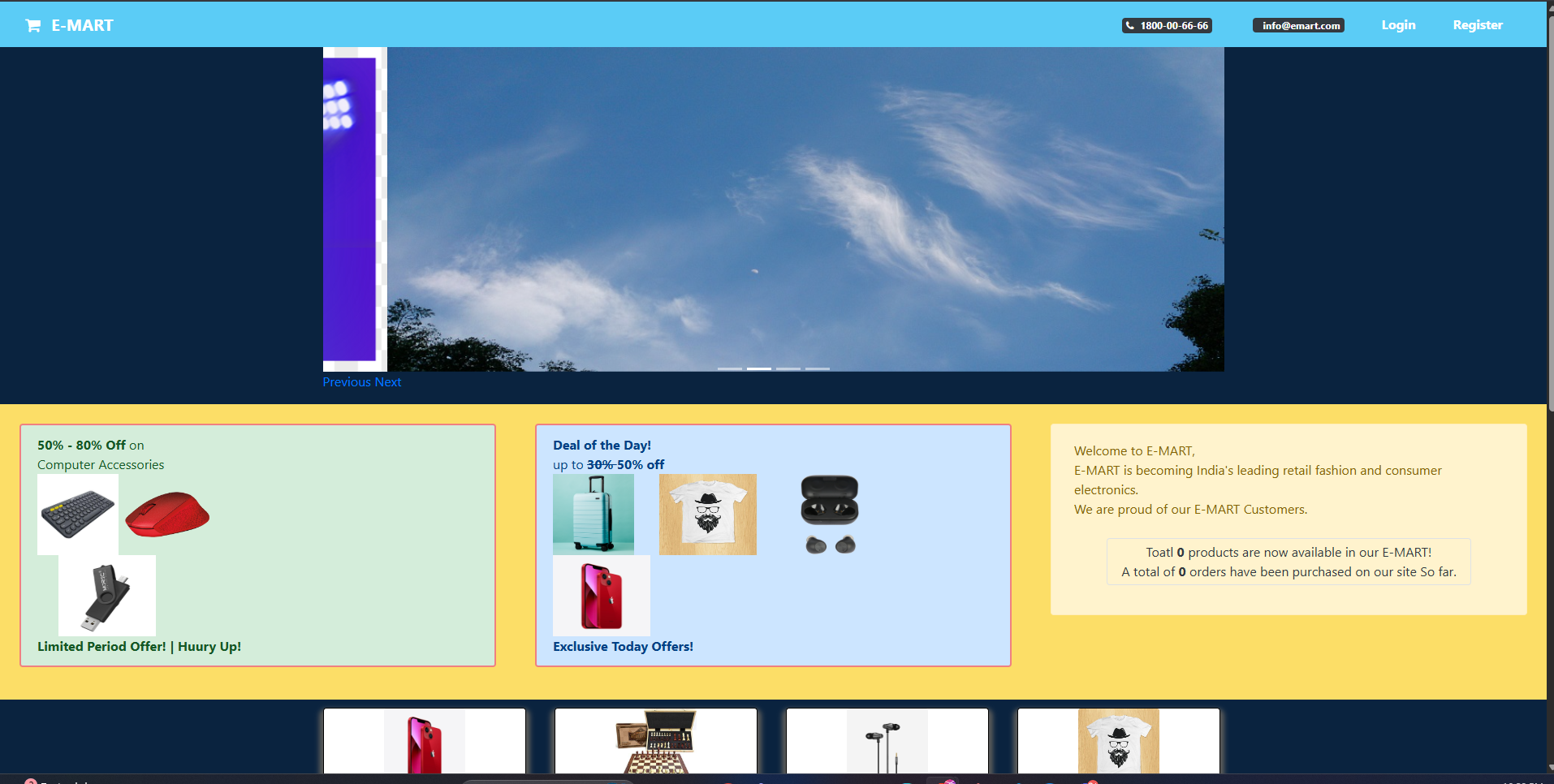

Visit http://localhost in your browser. You should see the EMart homepage where you can:

Create a new account
Login
View products
Place orders
Test the Java API by clicking on "Try BookSmart"

Clean Up

When you're done testing, clean up the resources:

Stop and remove all containers:

docker compose down

Remove all unused images and containers:

docker system prune -a

Warning: This removes all stopped containers, unused networks, dangling images, and build cache. Use with caution!

Conclusion

Congratulations! You've successfully containerized a complete microservice e-commerce application with Docker. You now understand:

How to write Dockerfiles for different technology stacks (Angular, Node.js, Java)
How to use multi-stage builds for optimization
How to configure Nginx as an API gateway
How to orchestrate multiple services with Docker Compose
How services communicate within Docker networks

This knowledge is essential for any DevOps engineer working with modern microservice architectures.
