🏗️ AWS CloudFormation Infrastructure as Code - Template Development Project

A comprehensive AWS CloudFormation project demonstrating advanced Infrastructure as Code (IaC) implementation, automated resource provisioning, and enterprise-grade template development. This intensive project showcases sophisticated CloudFormation template creation, dependency management, error resolution, and infrastructure automation using cutting-edge AWS services and IaC best practices for reliable, scalable, and maintainable infrastructure deployment.

Project Link: View Project
Author: Duc Thai
Email: ducthai060501@gmail.com
Duration: 3 hours
Difficulty Level: Advanced Infrastructure as Code and DevOps Engineering

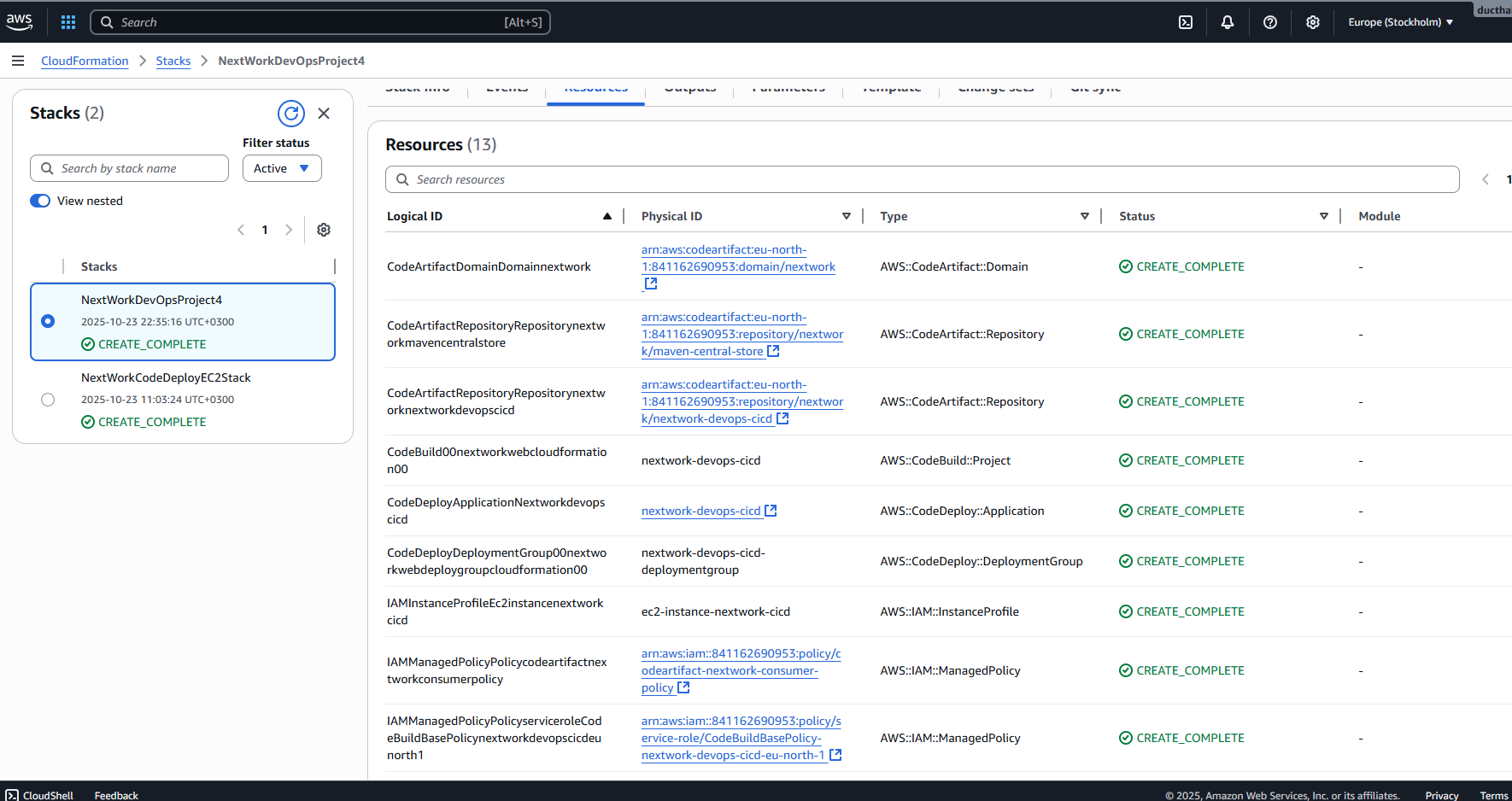

CloudFormation Infrastructure Architecture

🎯 Project Vision and Infrastructure as Code Excellence

This advanced CloudFormation project represents a comprehensive transformation of manual infrastructure management into automated, code-driven resource provisioning that ensures consistency, reliability, and scalability across multiple environments. The primary objective involves converting complex web application infrastructure into reusable, version-controlled CloudFormation templates that enable rapid deployment, consistent configuration, and sophisticated dependency management.

Strategic Infrastructure as Code Transformation Objectives:

🏗️ Complete Infrastructure Automation - Transform manual resource creation into automated, repeatable CloudFormation templates
📋 Template Generation Mastery - Utilize AWS IaC Generator for intelligent resource detection and template creation
🔧 Advanced Dependency Management - Implement sophisticated resource dependencies and timing controls
🚀 Reusable Template Architecture - Design flexible, parameterized templates for multiple environments
🛠️ Error Resolution Excellence - Master debugging and resolving complex CloudFormation deployment errors
📊 Enterprise Resource Management - Comprehensive IAM, CI/CD, and storage resource orchestration

Infrastructure as Code Excellence Focus: Every template component represents improved consistency, reliability, and maintainability, making sophisticated IaC practices essential for enterprise-grade infrastructure management and automated deployment operations.

🛠️ Advanced AWS CloudFormation Technologies and Architecture

Enterprise Infrastructure as Code Technology Stack

AWS CloudFormation - Comprehensive infrastructure provisioning service enabling automated resource management
AWS IaC Generator - Intelligent tool for scanning existing resources and generating CloudFormation templates
AWS CodeBuild - Managed build service with automated scaling and comprehensive CI/CD integration
AWS CodeDeploy - Automated application deployment service supporting sophisticated deployment strategies
AWS CodeArtifact - Secure package repository service for artifact management and distribution
AWS S3 - Object storage service for build artifacts and deployment packages
AWS IAM - Identity and access management with fine-grained security controls
AWS EC2 - Elastic compute instances for application hosting and development environments

Critical Infrastructure as Code Concepts and Practices Mastered

🏗️ Template Generation Excellence - Automated CloudFormation template creation from existing infrastructure
🔧 Dependency Management Mastery - Advanced DependsOn attributes and resource ordering optimization
🚀 Circular Dependency Resolution - Sophisticated troubleshooting of complex resource interdependencies
📋 Parameter Implementation - Flexible template customization through dynamic parameter systems
🔒 Security Integration - Comprehensive IAM role and policy management within templates
📊 Resource Referencing - Advanced logical ID usage and cross-resource communication
🎯 Error Debugging Excellence - Systematic approach to CloudFormation error resolution and optimization

💡 Project Implementation Structure and Advanced Methodology

Implementation Phases:

Infrastructure Analysis - Comprehensive assessment of existing AWS resources and dependencies
Template Generation - Automated CloudFormation template creation using IaC Generator
Dependency Optimization - Advanced resource ordering and dependency management implementation
Error Resolution - Systematic debugging and resolution of deployment failures
Manual Enhancement - Custom resource additions and template optimization
Parameter Integration - Dynamic template customization and reusability implementation

Advanced Infrastructure Components Managed:

AWS::CodeArtifact::Repository - Multiple repositories for artifact storage and distribution
AWS::S3::Bucket - Secure storage for build artifacts and deployment packages
AWS::CodeStarConnections::Connection - GitHub integration for source control connectivity
AWS::CodeDeploy::Application - Automated deployment application configuration
AWS::IAM::Role - Multiple service roles for EC2, CodeBuild, and CodeDeploy
AWS::IAM::ManagedPolicy - Fine-grained permissions for CodeArtifact access
AWS::CodeBuild::Project - Build automation with comprehensive configuration
AWS::CodeDeploy::DeploymentGroup - Deployment target management and strategy implementation

🔧 Advanced CloudFormation Template Generation and IaC Excellence

AWS IaC Generator Implementation

The AWS Infrastructure as Code Generator represents a sophisticated tool that automates CloudFormation template creation through intelligent resource scanning and template generation. This three-step process revolutionizes infrastructure management by converting existing resources into maintainable, version-controlled templates.

IaC Generator Workflow:

🔍 Comprehensive Resource Scanning - Automated detection of all AWS resources across your account with detailed configuration analysis
📋 Intelligent Template Creation - Resource selection and bundling into logical CloudFormation templates with dependency mapping
🚀 Automated Import Process - CloudFormation stack creation with complete resource management and lifecycle control

Template Generation Benefits:

⚡ Accelerated Development - Instant template generation from existing infrastructure configurations
🔒 Configuration Consistency - Exact resource configuration capture ensuring deployment reliability
📊 Dependency Discovery - Automatic resource relationship mapping and dependency identification
🎯 Best Practice Implementation - Template structure following CloudFormation best practices and conventions

Supported Resource Types and Limitations

Successfully Generated Resources:

AWS::CodeArtifact::Repository - Two CodeArtifact repositories with complete configuration
AWS::S3::Bucket - Build artifact storage with security and lifecycle policies
AWS::CodeStarConnections::Connection - GitHub integration for seamless source control
AWS::CodeDeploy::Application - Deployment application with comprehensive settings
AWS::IAM::Role - Three service roles with proper permissions and trust policies
AWS::IAM::ManagedPolicy - CodeArtifact access policy with fine-grained permissions

Manual Addition Requirements:

CodeBuild Project - Currently unsupported by IaC Generator requiring manual template definition
CodeDeploy Deployment Group - Complex configuration necessitating custom template implementation

🚨 Advanced Error Resolution and Debugging Excellence

Critical CloudFormation Error Analysis and Resolution

This project involved sophisticated debugging and resolution of multiple complex CloudFormation deployment errors, demonstrating advanced troubleshooting skills and deep understanding of AWS resource interdependencies.

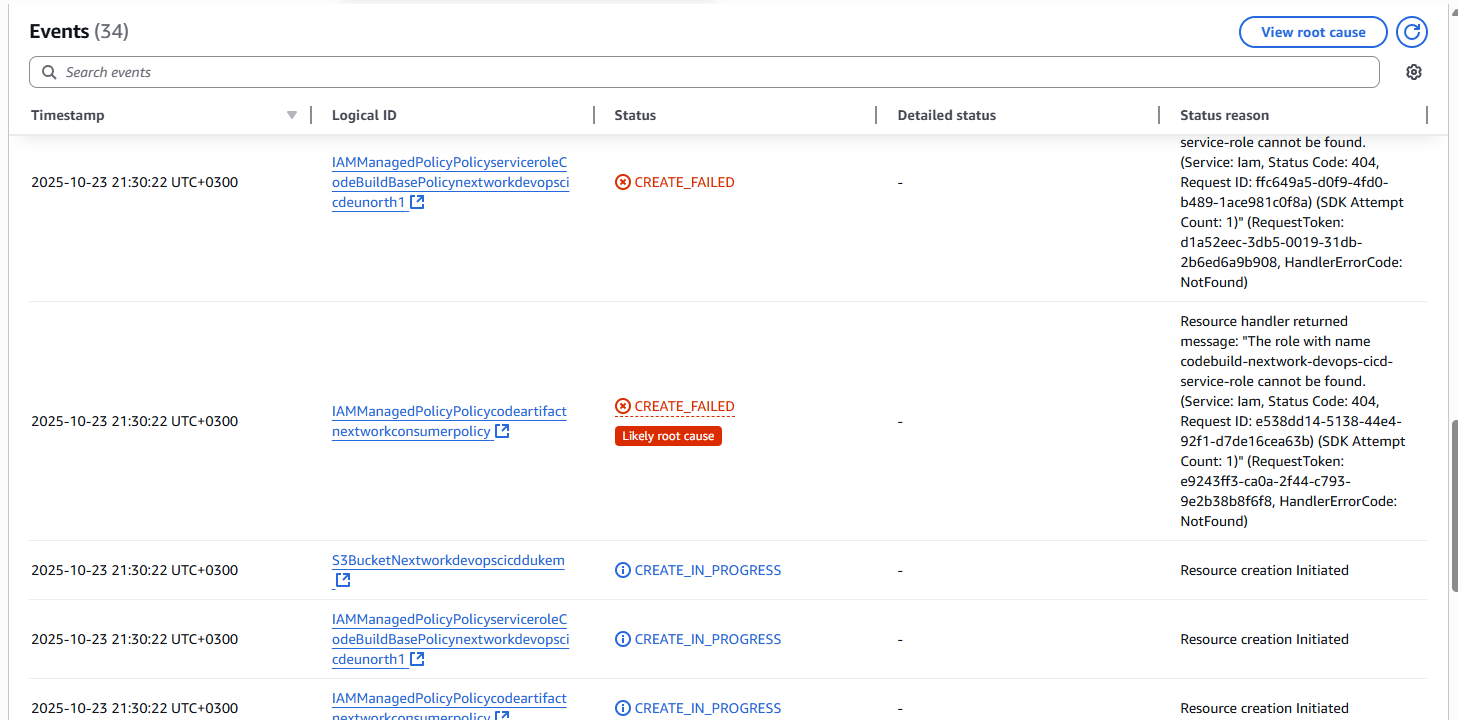

Error 1: IAM Role Not Found Exception

Error Message: "The role with name codebuild-nextwork-devops-cicd-service-role cannot be found."

Root Cause Analysis: CloudFormation attempted to attach IAM policies to a service role before the role itself was created, causing a timing dependency issue where resources were created in incorrect order.

Solution Implementation: Added strategic DependsOn attributes to four IAM managed policy resources, explicitly instructing CloudFormation to create the IAM role before attempting policy attachments.

Technical Resolution:

CodeArtifact Access Policy - Added DependsOn: "IAMRoleCodebuildnextworkdevopscicdservicerole"
CodeBuild Base Policy - Explicit dependency on IAM role creation
CodeDeploy Base Policy - Proper resource ordering implementation
EC2 Instance Base Policy - Sequential dependency management

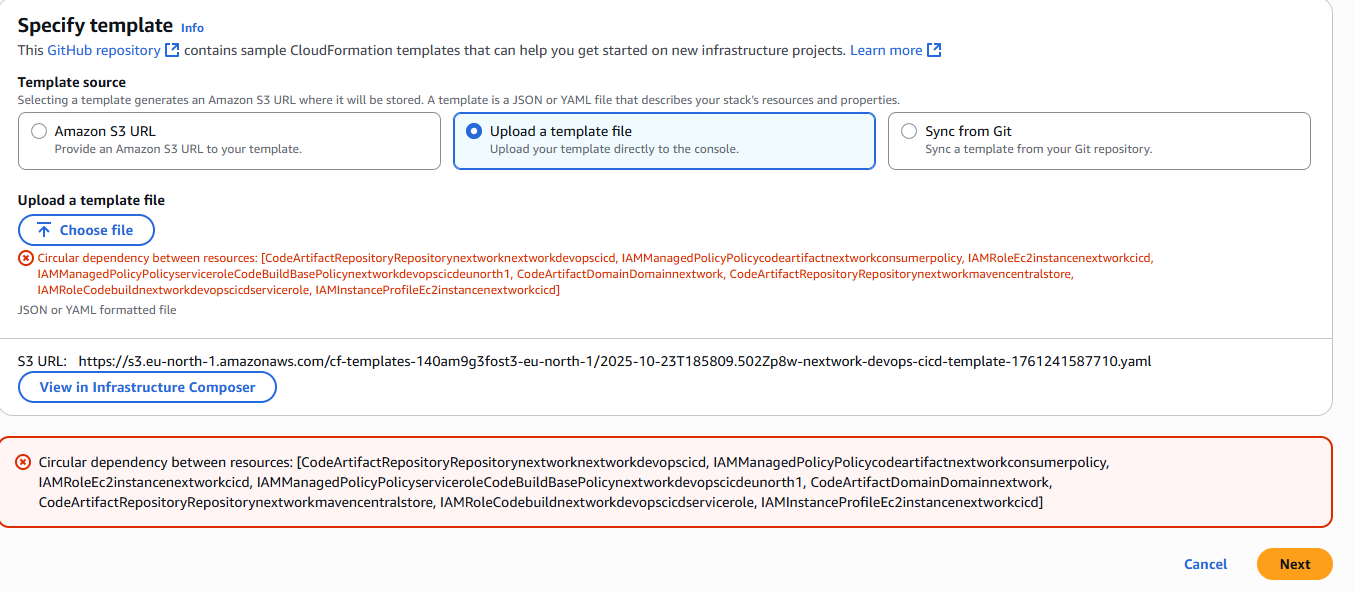

Error 2: Circular Dependency Resolution

Error Message: Circular dependency detected between IAM policies and roles

Root Cause Analysis: IAM policies were configured to depend on roles (via DependsOn), while roles simultaneously referenced the same policies through ManagedPolicyArns, creating an unresolvable dependency loop.

Solution Implementation: Removed ManagedPolicyArns references from IAM role definitions that caused bidirectional dependencies, implementing unidirectional dependency flow from policies to roles.

Dependency Resolution Strategy:

🔧 Eliminated Bidirectional References - Removed ManagedPolicyArns from role definitions causing circular dependencies
📋 Maintained Policy Attachments - Used DependsOn attributes for proper resource ordering
🎯 Implemented Linear Dependencies - Created clear dependency chain without circular references

Error 3: CodeStar Connections Host Configuration

Error Message: "Resource specifies a HostArn that your account does not own"

Root Cause Analysis: CloudFormation template incorrectly specified HostArn for GitHub.com connections, which is only required for self-hosted Git providers like GitHub Enterprise Server.

Solution Implementation: Removed CodeStarConnections resource and HostArn configuration, switching to legacy GitHub OAuth authentication for CodeBuild source integration.

🎨 Manual Resource Addition and Template Enhancement

Advanced Resource Implementation

Two critical resources required manual addition to the CloudFormation template due to IaC Generator limitations, demonstrating advanced CloudFormation development skills and complex resource configuration management.

CodeBuild Project Configuration

Manual Implementation Requirements:

🔧 Service Role Integration - Reference IAM role using logical ID: IAMRoleCodebuildnextworkdevopscicdservicerole
📦 Artifact Storage Configuration - S3 bucket reference using logical ID: S3BucketNextworkdevopscicddukem
🔒 CodeArtifact Repository Access - Environment variables and permissions for artifact repositories
📋 Build Specification - Comprehensive buildspec.yml configuration for automated build processes

CodeDeploy Deployment Group Implementation

Advanced Configuration Elements:

🎯 Service Role Assignment - CodeDeploy role reference: IAMRoleNextWorkCodeDeployRole
🚀 Application Integration - CodeDeploy application reference: CodeDeployApplicationNextworkdevopscicd
⚙️ Deployment Configuration - Blue-green deployment strategies and rollback policies
📊 Target Group Management - EC2 instance targeting and deployment group configuration

Template Parameterization Excellence

Implemented sophisticated parameter system enabling template reusability across multiple environments and projects:

Parameters:
  GitHubRepoOwner:
    Type: String
    Description: GitHub repository owner
    Default: "your-github-username"
  GitHubRepo:
    Type: String
    Description: GitHub repository name
    Default: "nextwork-web-project"
  EnvironmentName:
    Type: String
    Description: Environment designation
    Default: "development"

Parameter Benefits:

🔧 Dynamic Configuration - Runtime template customization without code modifications
🚀 Multi-Environment Support - Single template deployment across development, staging, and production
📋 Reusability Excellence - Template portability across different projects and organizations
🔒 Security Enhancement - Parameterized sensitive values preventing hardcoded credentials

🎉 Project Success and CloudFormation Mastery Validation

Successfully Deployed Infrastructure Stack

✅ Complete Template Deployment - Successful CloudFormation stack creation with all resources provisioned
✅ Advanced Error Resolution - Systematic debugging and resolution of complex dependency issues
✅ Resource Verification - Comprehensive validation of all deployed resources in CloudFormation console
✅ Dependency Optimization - Proper resource ordering with DependsOn attributes and logical references
✅ Manual Enhancement Success - CodeBuild and CodeDeploy resource integration with existing infrastructure
✅ Parameter Implementation - Dynamic template customization enabling multi-environment deployment
✅ IaC Best Practices - Template structure following CloudFormation excellence standards
✅ Security Integration - Comprehensive IAM role and policy management within template architecture

Advanced Infrastructure as Code Skills Demonstrated

CloudFormation Template Development - Professional expertise in complex template creation and optimization
AWS IaC Generator Mastery - Advanced utilization of automated template generation tools
Dependency Management Excellence - Sophisticated understanding of resource ordering and timing
Error Debugging Expertise - Systematic approach to CloudFormation troubleshooting and resolution
Security Integration Proficiency - Comprehensive IAM resource management and policy implementation
Parameter Design Excellence - Flexible template architecture for multiple environment deployment
Resource Integration Mastery - Complex multi-service resource orchestration and configuration
Best Practice Implementation - Enterprise-grade CloudFormation development and deployment strategies

🔍 Critical Infrastructure as Code Insights and Implementation Best Practices

Key CloudFormation Development Learning Points

Dependency Planning Excellence - Analyze resource relationships before template creation to prevent circular dependencies
IaC Generator Utilization - Leverage automated tools for initial template generation while understanding limitations
Systematic Error Resolution - Implement methodical debugging approach for CloudFormation deployment failures
Parameter-First Design - Design templates with flexibility and reusability as primary objectives
Security Integration Focus - Embed IAM best practices throughout template architecture from initial design

AWS CloudFormation Best Practices and Advanced Techniques

Use Logical ID References - Implement !Ref and !GetAtt functions instead of hardcoded resource names
Implement Strategic DependsOn - Use explicit dependencies only when CloudFormation cannot infer relationships
Design Unidirectional Dependencies - Avoid circular references through careful resource relationship planning
Parameterize Dynamic Values - Enable template reusability through comprehensive parameter implementation
Validate Template Structure - Use CloudFormation linting tools for syntax and best practice validation
Implement Stack Policies - Protect critical resources through CloudFormation stack policies and change management
Monitor Resource Costs - Include cost optimization considerations in template resource configurations

🚀 Advanced CloudFormation Features and Enterprise Considerations

Enterprise CloudFormation Architecture Patterns

Nested Stack Implementation - Modular template architecture for complex infrastructure management
Cross-Stack References - Resource sharing between CloudFormation stacks using exports and imports
StackSets Management - Multi-account and multi-region infrastructure deployment strategies
Change Set Validation - Preview infrastructure changes before deployment for risk management
Drift Detection - Monitor and manage configuration drift in deployed infrastructure

Advanced CloudFormation Features and Capabilities

Custom Resource Implementation - Lambda-backed custom resources for unsupported AWS services
CloudFormation Registry - Third-party resource type integration and private resource publishing
AWS CDK Integration - Higher-level programming language abstractions for CloudFormation development
CloudFormation Guard - Policy-as-code validation and compliance enforcement for templates
Application Composer - Visual template design and architecture diagramming tools

📚 Advanced Infrastructure as Code Learning Resources

AWS CloudFormation Documentation

Infrastructure as Code Best Practices

🤝 Project Impact and Professional Infrastructure Development

This AWS CloudFormation Infrastructure as Code project provided comprehensive, hands-on experience with enterprise-grade template development, automated resource provisioning, and sophisticated dependency management essential for modern cloud infrastructure operations. The intensive project showcased advanced skills in IaC template design, error resolution, and infrastructure automation critical for professional cloud engineering and DevOps roles.

Professional Development Impact: Successfully completing a comprehensive CloudFormation template development project demonstrates essential skills for cloud engineers, DevOps specialists, infrastructure architects, and platform engineers. The project combines technical implementation expertise with infrastructure automation best practices, providing practical experience directly applicable to enterprise infrastructure roles and cloud automation specializations.

Technical Achievement Significance: The systematic resolution of complex CloudFormation errors and successful implementation of sophisticated resource dependencies demonstrates advanced understanding of AWS infrastructure services and IaC development practices. The ability to create reusable, parameterized templates while maintaining security and operational excellence shows mastery of enterprise infrastructure engineering and automated deployment strategies.

Career Development Value: This project addresses real-world infrastructure automation challenges faced by organizations modernizing their cloud operations and implementing Infrastructure as Code practices. The demonstrated ability to develop sophisticated CloudFormation templates, resolve complex deployment issues, and implement scalable infrastructure patterns provides practical experience essential for senior cloud engineering roles, infrastructure architecture positions, and DevOps automation specializations.

This project demonstrates advanced Infrastructure as Code and CloudFormation expertise essential for cloud engineers, DevOps specialists, infrastructure architects, and platform engineers, showcasing comprehensive understanding of template development, dependency management, error resolution, and automation excellence required for delivering reliable, scalable, and maintainable infrastructure systems in modern enterprise cloud environments.

Project Duration: 3 hours
Project Source: NextWork.org - CloudFormation IaC Project
Skill Level: Advanced Infrastructure as Code and DevOps Engineering
Contact: ducthai060501@gmail.com

This project showcases advanced AWS CloudFormation and Infrastructure as Code expertise essential for enterprise infrastructure management, demonstrating comprehensive understanding of template development, dependency resolution, resource automation, and operational excellence required for delivering reliable, efficient, and scalable infrastructure systems in professional cloud development environments.

🏗️ AWS CloudFormation Infrastructure as Code

AWS CloudFormation project demonstrating advanced Infrastructure as Code (IaC) implementation
