📊 AWS RDS and QuickSight Integration Project

A comprehensive AWS database and analytics project demonstrating Amazon RDS MySQL implementation, secure database connectivity, QuickSight integration, VPC security configuration, and advanced data visualization techniques for enterprise business intelligence solutions.

Project Link: View Project
Author: Duc Thai
Email: ducthai060501@gmail.com
Duration: 3 hours
Difficulty Level: Advanced

🎯 Project Overview

This project focuses on implementing a complete database and analytics solution using Amazon RDS for data storage and Amazon QuickSight for business intelligence visualization. The project demonstrates advanced database security, VPC configuration, IAM role management, and secure service integration patterns essential for enterprise data architecture.

🗄️ Understanding Amazon RDS

Amazon RDS (Relational Database Service) is AWS's managed database service that simplifies relational database deployment, operation, and scaling. Key capabilities include:

• Managed Database Operations - Automated setup, operation, and scaling of relational databases
• Multi-Engine Support - Support for MySQL, PostgreSQL, MariaDB, Oracle, SQL Server, and Aurora
• Automated Management - Handles backups, patching, and maintenance automatically
• High Availability - Built-in high availability and disaster recovery features
• Security Integration - Comprehensive security features with VPC and IAM integration
• Performance Optimization - Automated performance monitoring and optimization
• Scalability - Easy vertical and horizontal scaling capabilities
• Developer Focus - Allows developers to focus on applications rather than infrastructure

🚀 RDS Implementation in This Project

In this project, I implemented a comprehensive RDS and QuickSight integration solution demonstrating:

• MySQL Database Creation - Established managed MySQL relational database
• Sample Data Population - Created tables and populated with structured data
• Security Configuration - Implemented comprehensive database security measures
• VPC Integration - Configured private database access within VPC
• Security Group Management - Managed access control through security groups
• QuickSight Integration - Connected database to visualization service
• IAM Role Configuration - Implemented proper service-to-service authentication
• Data Visualization - Created business intelligence dashboards
• Safe Cloud Data Management - Demonstrated secure data storage and analysis

💡 Key Learning: Database Security Importance

Unexpected Discovery: The project revealed the critical importance of comprehensive database security and access management.

Critical Insight: Database security requires multiple coordinated security layers:

• Public Access Risks - Making RDS instances public creates significant security vulnerabilities
• VPC Connection Setup - Proper VPC connections provide essential security isolation
• Security Group Configuration - Dedicated security groups enable granular access control
• IAM Role Management - QuickSight requires specific IAM roles for secure service integration
• Multi-Layer Security - Multiple security layers work together for comprehensive protection
• Beyond Data Storage - Cloud database management involves extensive security considerations

Key Takeaway: Effective cloud database management extends far beyond data storage—it requires comprehensive security architecture, proper access controls, and continuous monitoring to protect sensitive data in enterprise environments.

🛠️ Technical Challenge: Connectivity Troubleshooting

Project Duration: 3 hours (longer than expected due to complex networking issue)

Challenge Encountered: Initial inability to connect RDS to MySQL Workbench despite multiple troubleshooting attempts:

Troubleshooting Process

1. Software Investigation - Suspected Workbench or password issues
2. Version Management - Attempted Workbench downgrade and MySQL server reinstallation
3. Software Upgrade - Tried upgrading Workbench to latest version
4. Infrastructure Recreation - Deleted and recreated entire RDS instance
5. Network Analysis - Investigated underlying network configuration

Root Cause Discovery

Issue Identified: Subnet's route table contained a broken route to a deleted Internet Gateway, creating a blackhole route that prevented connectivity.

Solution Implemented: Updated the route table to point to a valid Internet Gateway, immediately resolving the connection issue.

Learning Outcome: Network-level infrastructure issues can manifest as application connectivity problems, requiring systematic investigation of all network components including route tables, gateways, and security configurations.

📋 Project Implementation Strategy

Phase 1: Database Foundation

Creating a Relational Database

I created my relational database through a comprehensive setup process:

• IAM User Access - Logged in using dedicated IAM user credentials
• Service Navigation - Accessed Aurora and RDS service console
• Database Creation - Selected "Create Database" with MySQL engine
• Configuration Setup - Configured DB instance size, storage, and credentials
• Functionality Validation - Established fully functional relational database

📚 Understanding Relational Database Concepts

Relational Database Structure

A relational database organizes data into structured tables with specific characteristics:

• Table Organization - Data organized into tables with rows and columns
• Entity Separation - Each table stores information about specific entities (customers, orders, products)
• Relationship Management - Tables linked through relationships using shared keys
• Data Integrity - Structure ensures data consistency and integrity
• Query Efficiency - Organized structure enables efficient data search and retrieval
• Data Combination - Related tables can be joined for comprehensive data analysis

MySQL vs SQL: Understanding the Difference

Understanding the distinction between MySQL and SQL is fundamental for database management:

• SQL (Structured Query Language) - The standardized language for database management and querying
• MySQL - A specific database management system (DBMS) that uses SQL
• Language vs Tool - SQL is the language; MySQL is the tool that interprets the language
• Functionality Relationship - MySQL uses SQL to store, organize, and retrieve data
• Industry Standard - SQL is the universal database language; MySQL is one implementation

🔧 Database Population and Initial Configuration

Public Access Configuration

I initially made my RDS instance public to enable external tool connectivity:

• External Tool Access - Enable connection from local machine using MySQL Workbench
• Internet Connectivity - Allow external tools to access database over internet
• Security Group Control - Maintain access control through security group settings
• Development Access - Facilitate development and testing activities
• Temporary Configuration - Temporary setup for initial database population

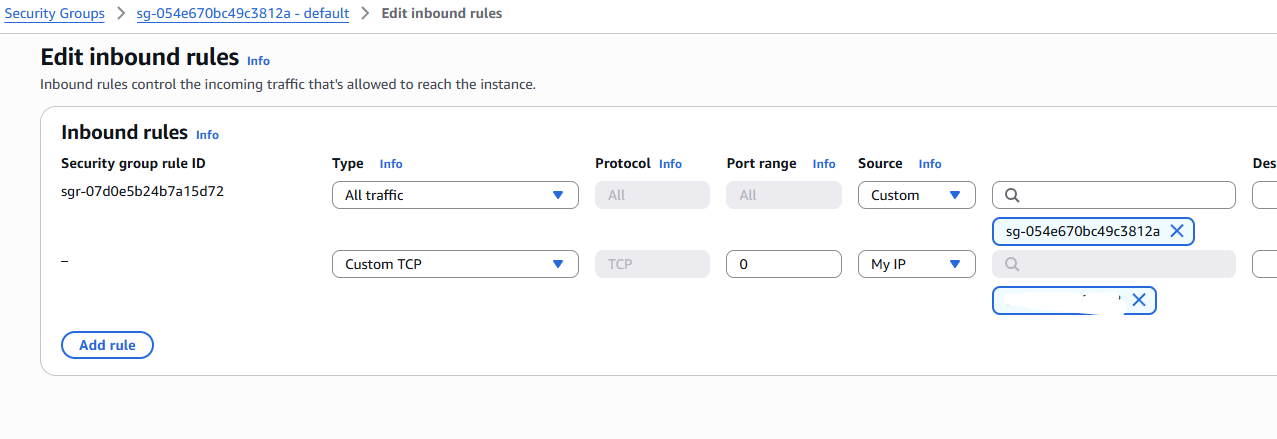

Security Group Configuration

I updated the default security group to restrict access to my specific IP address:

• IP Restriction - Allow access only from specific IP address
• Internet Exposure Management - Control access despite public configuration
• Unauthorized Access Prevention - Prevent unauthorized connection attempts
• Security Maintenance - Maintain database security during development
• Access Control - Granular control over database connectivity

💻 Database Development with MySQL Workbench

Schema and Table Creation

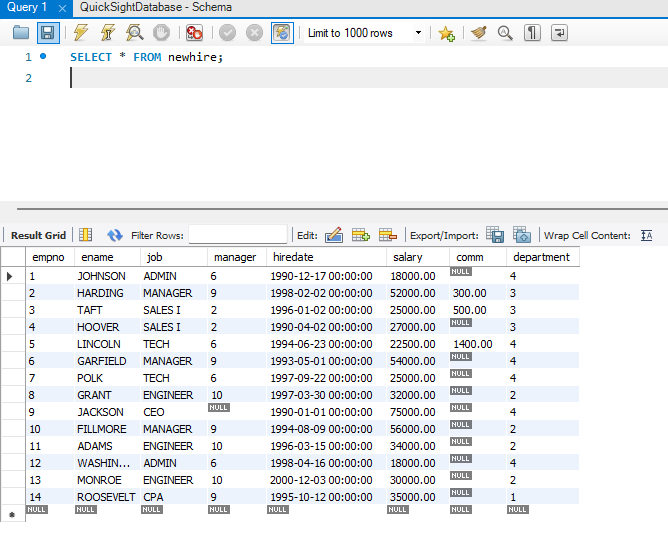

I used MySQL Workbench to create and populate my database structure:

Database Development Process

1. Schema Creation - Created new schema named QuickSightDatabase
2. Schema Selection - Selected schema by double-clicking for active use
3. Table Definition - Used CREATE TABLE statements to define table structures
4. Data Type Configuration - Configured appropriate data types for each column
5. Data Population - Used INSERT commands to add sample records
6. Relationship Establishment - Created relationships between related tables

Tables Created

• new_hire Table - Employee information and hiring data
• department Table - Organizational department information
• Sample Data - Comprehensive sample records for testing and visualization

SQL Skills Demonstrated

• Schema Management - Database schema creation and selection
• Table Design - Proper table structure definition and relationships
• Data Type Selection - Appropriate data type configuration for different fields
• Data Insertion - Manual data input using SQL INSERT statements
• Relational Design - Understanding of relational database design principles

📊 QuickSight Integration and Connectivity

QuickSight Account Setup

I established QuickSight connectivity through a systematic setup process:

1. Account Registration - Signed up for free trial QuickSight account
2. Regional Consistency - Ensured QuickSight and RDS in same AWS region
3. Console Access - Accessed QuickSight management console
4. Dataset Creation - Initiated "New Dataset" creation process
5. Data Source Selection - Selected RDS as primary data source
6. Database Selection - Chose specific database instance from available list
7. Authentication - Provided database username and password credentials

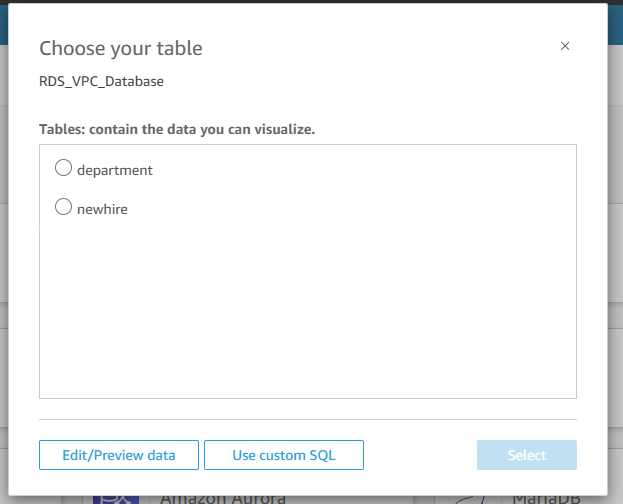

8. Schema Detection - QuickSight automatically detected schema and tables
9. Data Import - Imported data for visualization and analysis

Initial Security Risk Assessment

Security Concern Identified: The initial solution presented significant security risks:

• Public Internet Exposure - RDS security group allowed inbound traffic from anywhere (0.0.0.0/0)
• Unauthorized Access Risk - Database publicly accessible over internet
• Attack Vector Exposure - Vulnerable to hackers and malicious users
• Security Threat Landscape - Exposed to various attack types:
• Unauthorized Access Attempts - Direct connection attempts from internet
• SQL Injection Attacks - Malicious SQL code injection attempts
• Brute-Force Login Attempts - Automated password guessing attacks
• Data Exposure Risk - Sensitive data accessible to unauthorized parties

🔒 Enhanced Security Implementation

Improved Security Strategy

Enterprise Security Approach: Real-world setups should implement advanced security measures:

• IP Restriction - Limit access to specific IP addresses
• Private Connectivity - Use VPC peering or AWS PrivateLink
• Network Isolation - Keep databases within private network boundaries
• Multi-Layer Security - Implement defense-in-depth security architecture
• Access Monitoring - Continuous monitoring of database access patterns

VPC Security Group Implementation

I created a dedicated security group for managing QuickSight-to-RDS connectivity:

• VPC Integration - Created security group within same VPC as RDS instance
• Private Communication - Enabled QuickSight communication through private network paths
• Resource Access Control - Controlled which resources can access RDS instance
• Internet Exposure Elimination - Avoided exposing database to public internet
• Trusted Service Access - Ensured only trusted AWS services within VPC can access data
• Secure Data Transfer - Enabled secure, private data transmission

QuickSight VPC Connection Configuration

I configured QuickSight for secure VPC connectivity:

1. QuickSight Management Access - Accessed "Manage QuickSight" console
2. VPC Connection Addition - Added new VPC connection configuration
3. VPC Details Configuration - Specified VPC details for QuickSight access
4. Execution Role Assignment - Assigned aws-quicksight-service-role-v0 execution role
5. Permission Challenge - Initial role lacked VPC connection permissions
6. IAM Policy Update - Updated role's IAM policy with necessary permissions
7. Successful Connection - QuickSight successfully connected to VPC securely

🛡️ Complete RDS Security Implementation

Private Database Configuration

I implemented comprehensive database security measures:

• Public Access Removal - Set RDS instance to "Not Publicly Accessible"
• Dedicated Security Group - Created new security group specifically for RDS instance
• Traffic Restriction - Allowed MySQL/Aurora traffic only from QuickSight security group
• Internet Isolation - Eliminated public internet access to database
• Service-Specific Access - Enabled only QuickSight communication within VPC
• Secure Communication - Established secure, private communication channel

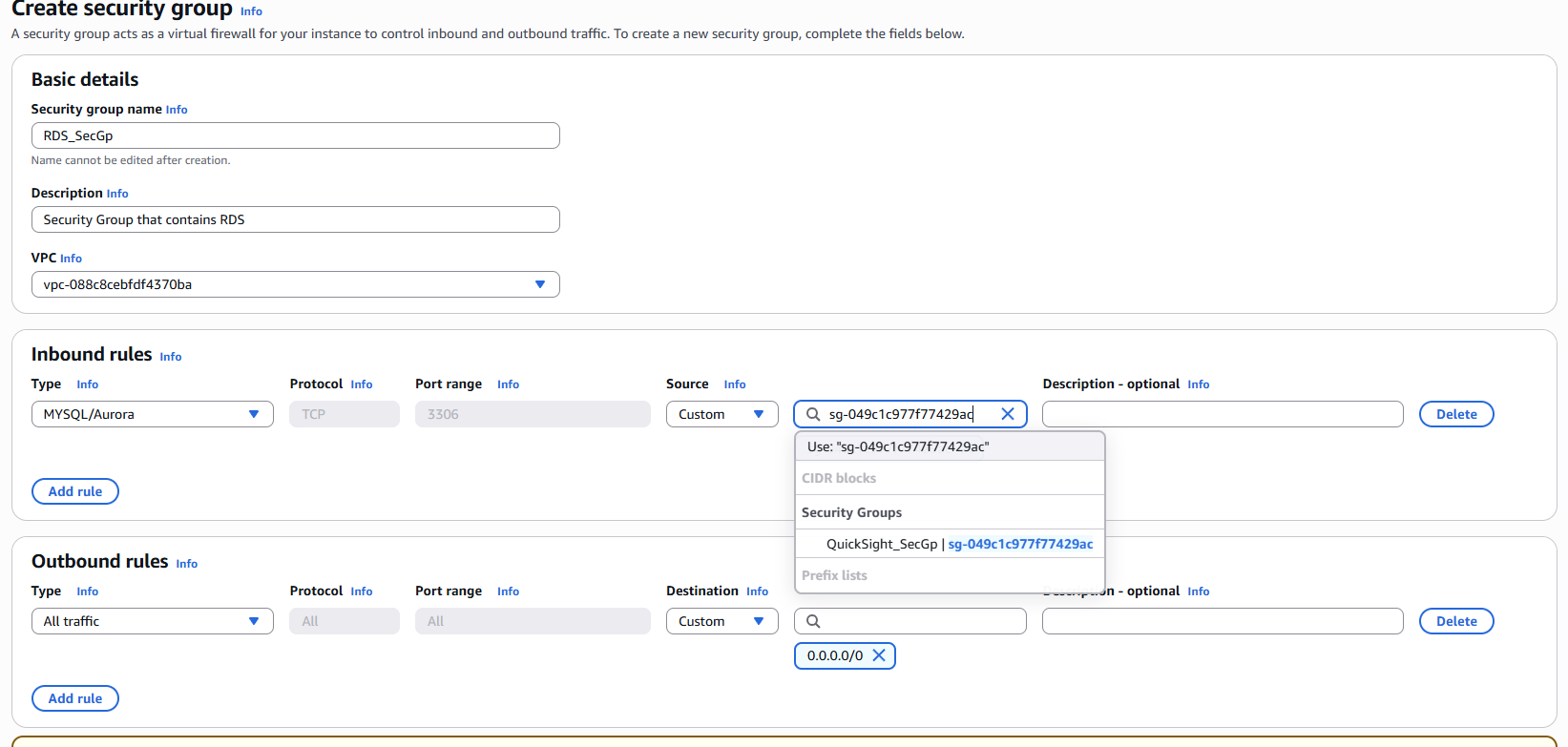

Security Group Management

I updated RDS security group configuration for enhanced security:

• Default Group Removal - Removed default security group from RDS instance
• Custom Group Attachment - Attached newly created security group
• QuickSight-Specific Access - Configured to allow traffic only from QuickSight security group
• MySQL/Aurora Protocol - Restricted to specific database protocol traffic
• Private Network Security - Maintained database privacy from public internet
• Secure Service Integration - Enabled secure QuickSight connectivity

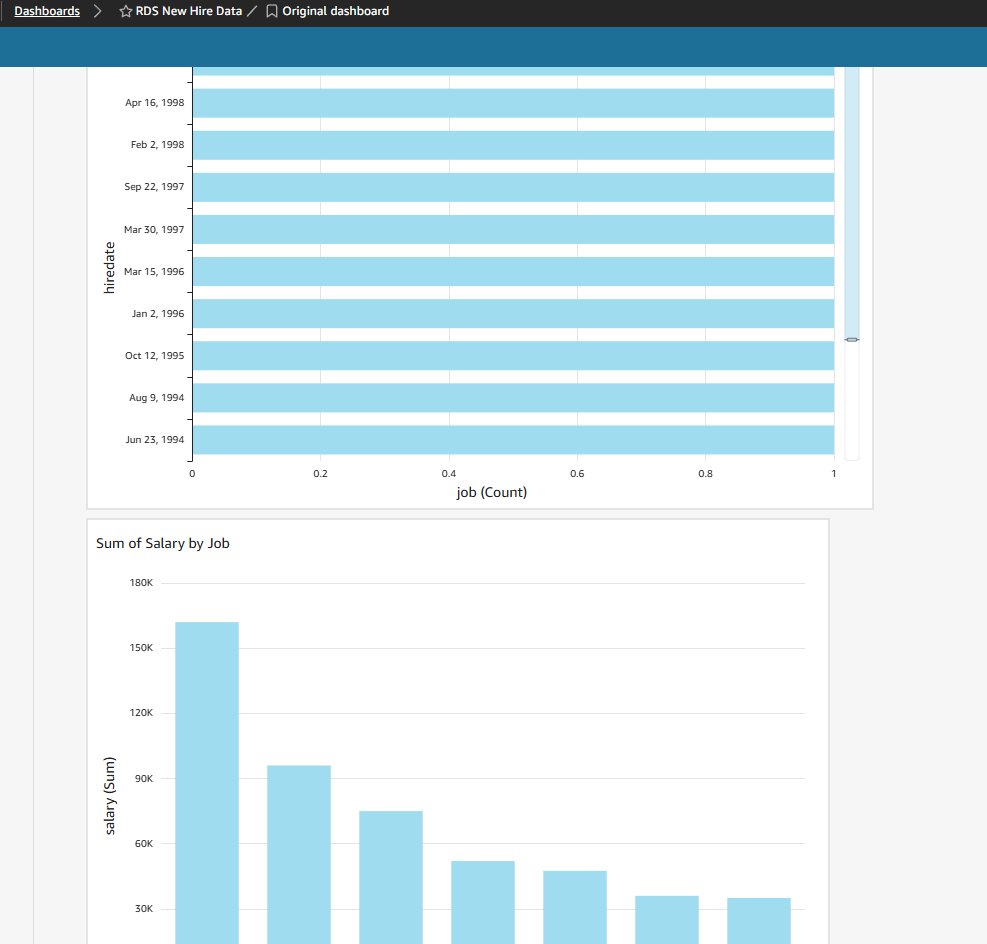

📈 Secure QuickSight Data Source Integration

Private Data Source Configuration

I configured QuickSight with the secured RDS data source:

Security Architecture Comparison

Enhanced Security Implementation: The new data source configuration represents a significant security improvement:

• Private VPC Setup - Connected through secure VPC configuration instead of public access
• Dedicated Security Groups - Uses dedicated security groups for granular access control
• VPC Connection - Utilizes private VPC connection for service communication
• Internet Isolation - Database protected from public internet access
• Secure Visualization - Enables visualization and analysis through secure channels
• Enterprise-Grade Security - Implements enterprise-level security architecture

🏆 Project Outcomes and Technical Achievements

Successfully Implemented

✅ Amazon RDS MySQL Database - Complete managed database with proper configuration
✅ Database Schema and Tables - Structured data with relational design
✅ MySQL Workbench Integration - Local development tool connectivity
✅ Sample Data Population - Comprehensive test data for analysis
✅ QuickSight Account Setup - Business intelligence service configuration
✅ VPC Security Implementation - Private network connectivity and security
✅ Security Group Management - Granular access control implementation
✅ IAM Role Configuration - Proper service-to-service authentication
✅ Secure Data Visualization - Private business intelligence dashboard creation

Technical Skills Demonstrated

• RDS Database Administration - Complete managed database setup and configuration
• MySQL Database Development - Schema design, table creation, and data management
• VPC Security Architecture - Advanced network security implementation
• Security Group Management - Granular access control configuration
• IAM Role Management - Service authentication and authorization
• QuickSight Integration - Business intelligence service connectivity
• Network Troubleshooting - Complex connectivity issue resolution
• Database Security - Multi-layer security implementation patterns

🔍 Key Insights and Best Practices

Critical Learning Points

1. Database Security Complexity - Database security requires multiple coordinated layers
2. Public Access Risks - Public database exposure creates significant security vulnerabilities
3. VPC Integration Importance - Private network connectivity essential for enterprise security
4. Network Infrastructure Impact - Network-level issues can manifest as application problems
5. Security Group Precision - Granular security group configuration critical for access control

RDS and QuickSight Best Practices

• Private Database Deployment - Always deploy databases in private subnets
• Security Group Segregation - Use dedicated security groups for each service
• IAM Role Management - Implement least privilege access through IAM roles
• VPC Connectivity - Use VPC connections for service-to-service communication
• Network Monitoring - Monitor network configurations and route tables
• Access Logging - Implement comprehensive access logging and monitoring
• Regular Security Reviews - Conduct regular security architecture reviews

🔄 Advanced Implementation Considerations

Enterprise Database Security

• Encryption Implementation - Enable encryption at rest and in transit
• Backup Strategy - Implement automated backup and point-in-time recovery
• Multi-AZ Deployment - Deploy across multiple availability zones
• Read Replicas - Implement read replicas for performance and disaster recovery
• Database Monitoring - Comprehensive performance and security monitoring

Advanced Analytics Features

• Data Lake Integration - Connect to S3 data lakes for comprehensive analytics
• Real-Time Analytics - Implement real-time data streaming and analysis
• Machine Learning Integration - Integrate with AWS ML services for predictive analytics
• Advanced Visualizations - Create sophisticated business intelligence dashboards
• Automated Reporting - Implement automated report generation and distribution

📚 Learning Resources

AWS Documentation

• Amazon RDS Documentation
• Amazon QuickSight User Guide
• RDS MySQL Documentation
• QuickSight AWS Data Sources

Best Practices Resources

• RDS Best Practices
• RDS Security Groups
• QuickSight Security
• AWS Well-Architected Framework

🤝 Project Reflection

This AWS RDS and QuickSight Integration project provided comprehensive hands-on experience with enterprise database architecture, security implementation, and business intelligence integration. The most significant insight was understanding the critical importance of database security—it extends far beyond data storage to encompass comprehensive security architecture, network isolation, and multi-layer access controls.

Key Takeaway: The project's technical challenge with route table connectivity issues demonstrated that cloud infrastructure requires systematic understanding of all network components. Database security isn't just about authentication—it requires proper VPC configuration, security group management, IAM roles, and continuous monitoring to create truly secure enterprise data solutions.

This project demonstrates advanced AWS database and analytics skills essential for data engineers, database administrators, and business intelligence developers, showcasing comprehensive understanding of secure database architecture, service integration, and enterprise data management required for production-grade data solutions.

Project Duration: 3 hours (including troubleshooting)
Project Source: NextWork.org - Visualize a Relational Database
Skill Level: Advanced Database and Analytics
Contact: ducthai060501@gmail.com

This project showcases advanced AWS RDS and QuickSight integration skills essential for enterprise data architecture, demonstrating comprehensive understanding of database security, service integration, and business intelligence implementation patterns required for secure, scalable data solutions.
